AZEmptyState Making empty state simple

UI Components

May 21, 2025

Making empty state simple

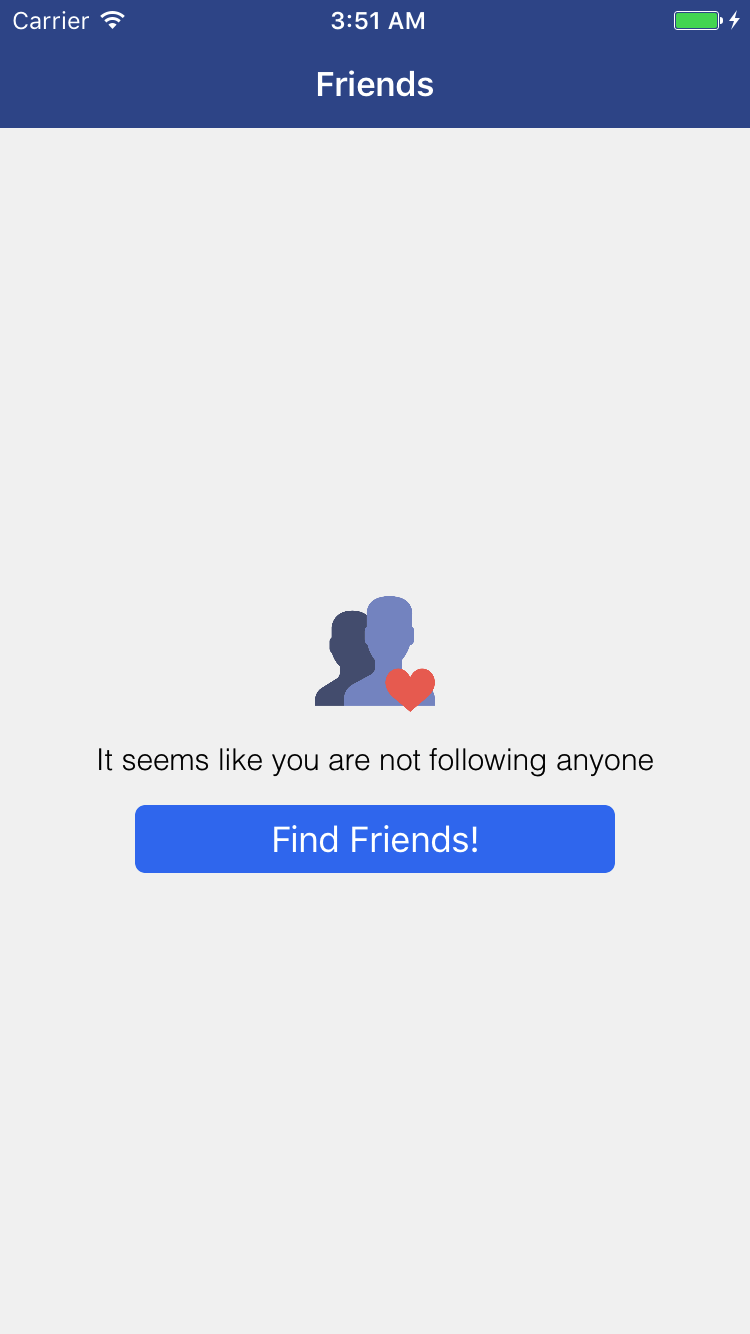

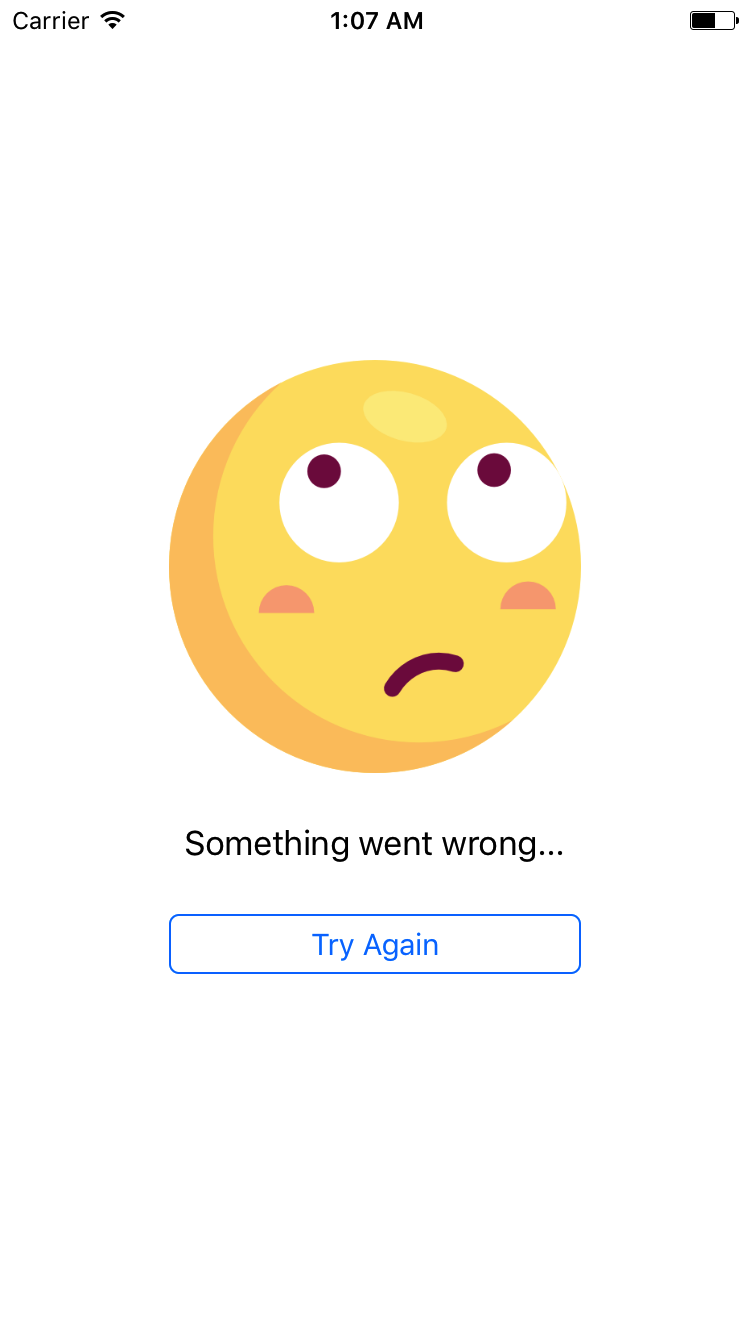

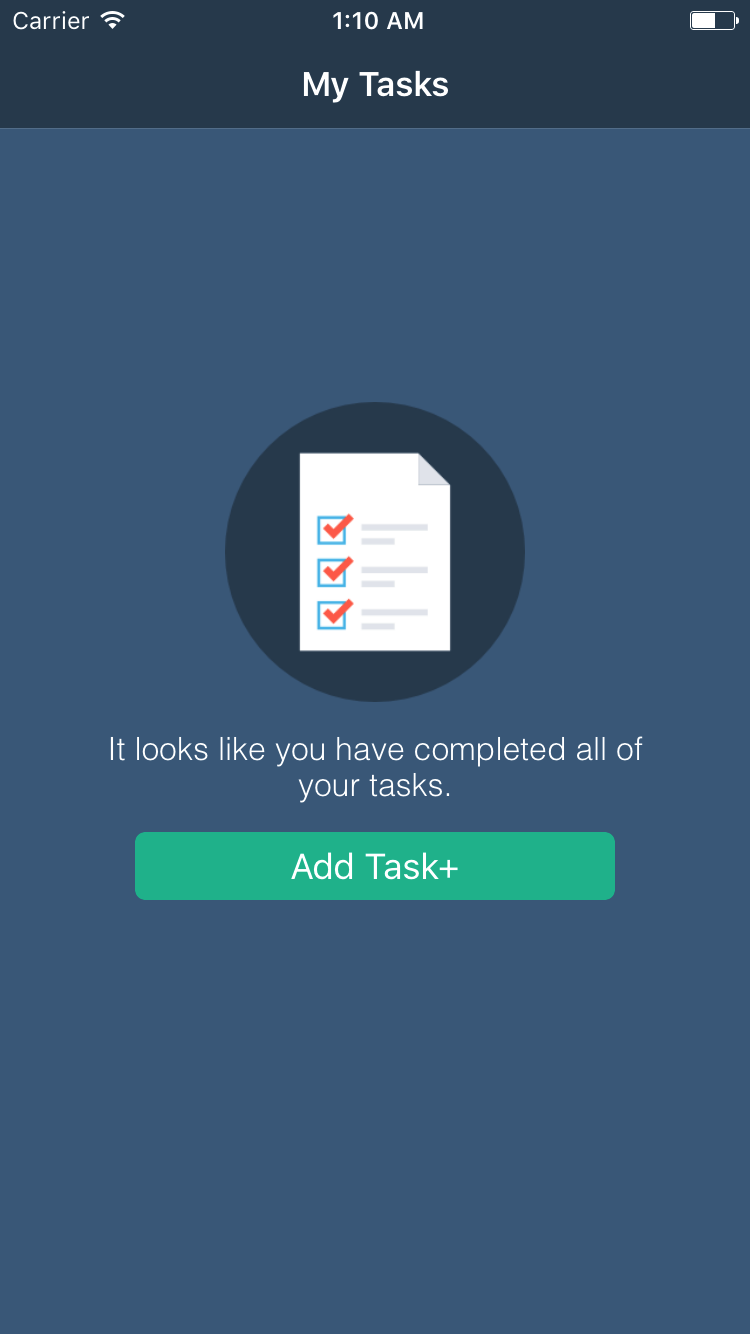

Screenshots

Installation

Cocoa Pods:



                                                pod ‘AZEmptyState’

Manual:

Simply drag and drop the `Sources` folder to your project.

Usage:

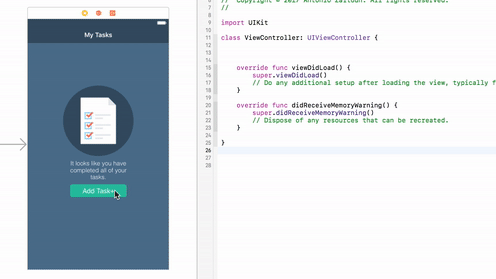

Using Interface Builder:

Programmatically:



                                                //init var

emptyStateView = AZEmptyStateView()
//customize

emptyStateView.image = #imageLiteral(resourceName: “thinking”)

emptyStateView.message = “Something went wrong…”

emptyStateView.buttonText = “Try Again”

emptyStateView.addTarget(self, action: #selector(tryAgain), for: .touchUpInside)
//add subview

view.addSubview(emptyStateView)
//add autolayout

emptyStateView.translatesAutoresizingMaskIntoConstraints = false

emptyStateView.centerXAnchor.constraint(equalTo: view.centerXAnchor).isActive = true

emptyStateView.centerYAnchor.constraint(equalTo: view.centerYAnchor).isActive = true

emptyStateView.widthAnchor.constraint(equalTo: view.widthAnchor, multiplier: 0.6).isActive = true

emptyStateView.heightAnchor.constraint(equalTo: view.heightAnchor, multiplier: 0.55).isActive = true

Sub Classing

Here is an example of sub-classing:



                                                @IBDesignable

class MyEmptyStateView: AZEmptyStateView{
//Use image with content mode of `scale aspect fit`

override func setupImage() -> UIImageView {

let imageView = UIImageView()

imageView.contentMode = .scaleAspectFit

return imageView

}
//Use the default label with extra modifications, such as different font and different color.

override func setupLabel() -> UILabel {

let label = super.setupLabel()

label.font = UIFont(name: “Helvetica-Light”, size: 16)

label.numberOfLines = 0

label.textColor = .white

return label

}
//use a custom subclass of UIButton

override func setupButton() -> UIButton {

return HighlightableButton()

}
//setup the stack view to your liking

override func setupStack(_ imageView: UIImageView, _ textLabel: UILabel, _ button: UIButton) -> UIStackView {

let stack = super.setupStack(imageView, textLabel, button)

stack.spacing = 14

stack.alignment = .center

button.widthAnchor.constraint(equalTo: stack.widthAnchor, multiplier: 0.8).isActive = true

imageView.widthAnchor.constraint(equalTo: stack.widthAnchor, multiplier: 0.5).isActive = true

return stack

}

}
