VBPopFlateButton

November 8, 2023

Flat button with 21 different states and 2 types animated using pop.

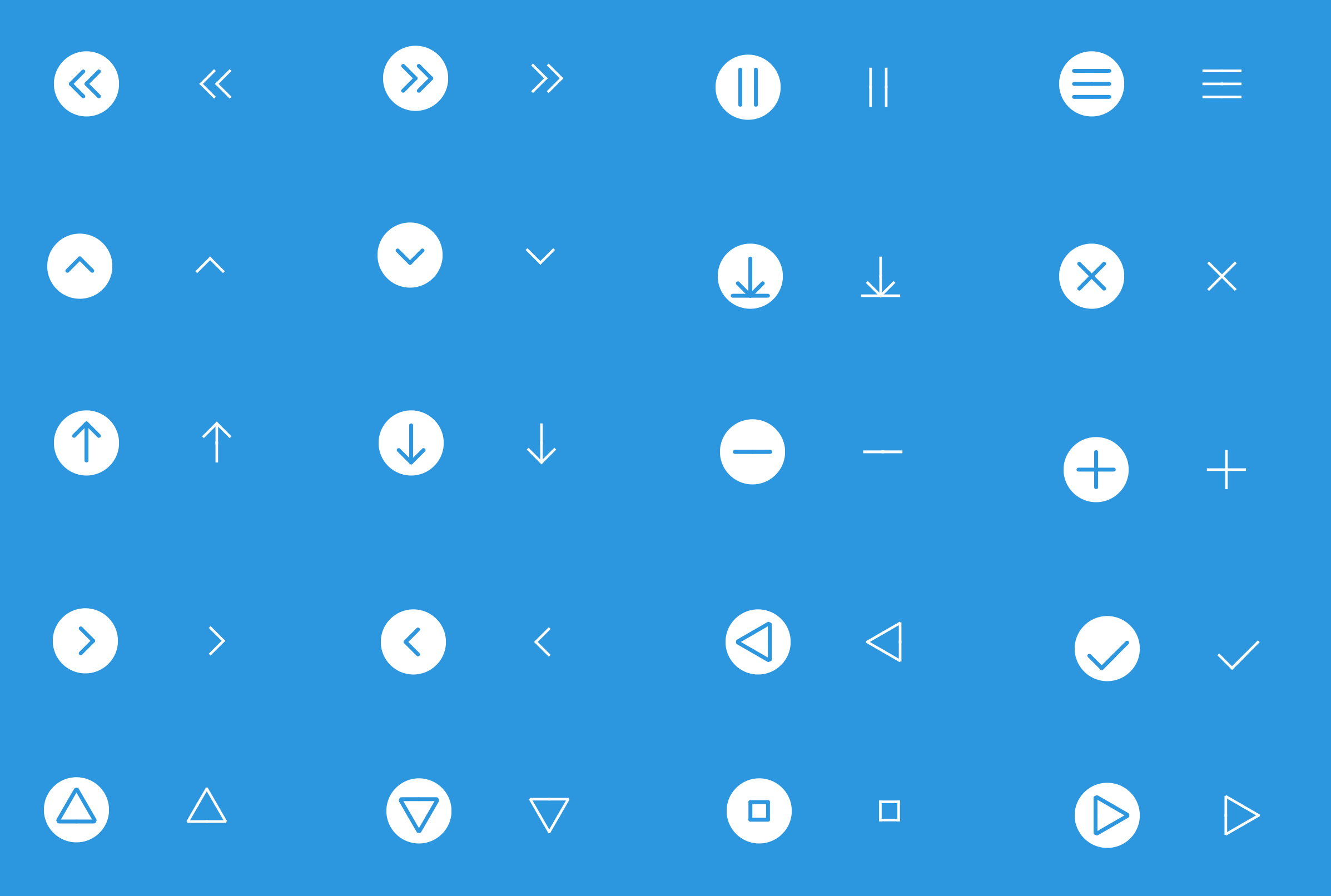

These are some examples of both types in different states:

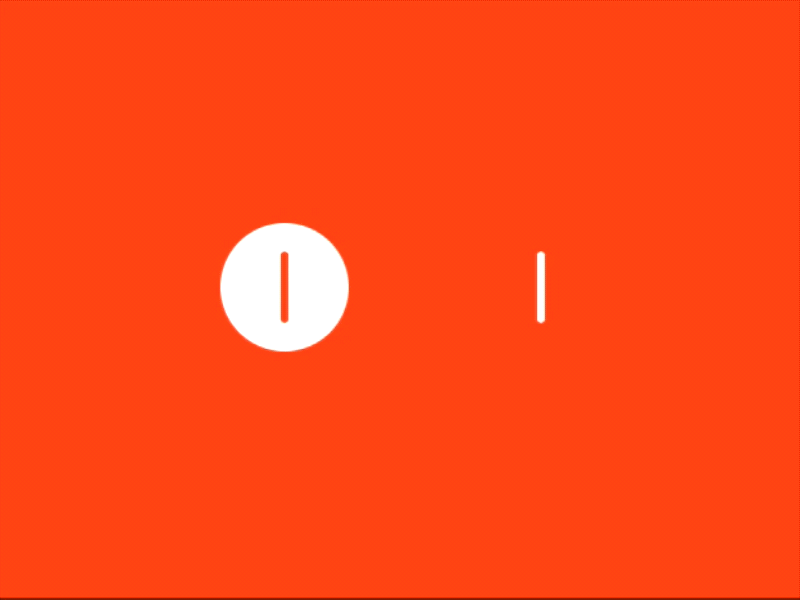

And here you can see them animated:

##How to use it Best way is using CocoaPods



                                                pod ‘VBFPopFlatButton’

You can also clone and open example project. The class you have to use is VBFPopFlatButton (subclass of UIButton). You will also find VBFDoubleSegment which is just a helping class.

Here there is some example code on how to use the button:

Flat Rounded Style



                                                //Example

self.flatRoundedButton = [[VBFPopFlatButton alloc]initWithFrame:CGRectMake(100, 150, 30, 30)

buttonType:buttonMenuType

buttonStyle:buttonRoundedStyle

animateToInitialState:YES];

self.flatRoundedButton.roundBackgroundColor = [UIColor whiteColor];

self.flatRoundedButton.lineThickness = 2;

self.flatRoundedButton.tintColor = [UIColor flatPeterRiverColor];

[self.flatRoundedButton addTarget:self

action:@selector(flatRoundedButtonPressed)

forControlEvents:UIControlEventTouchUpInside];

[self.view addSubview:self.flatRoundedButton];

Flat Plain Style



                                                //Example

self.flatPlainButton = [[VBFPopFlatButton alloc]initWithFrame:CGRectMake(200, 150, 30, 30)

buttonType:buttonAddType

buttonStyle:buttonPlainStyle

animateToInitialState:NO];

self.flatPlainButton.lineThickness = 2;

self.flatPlainButton.tintColor = [UIColor whiteColor];

[self.flatPlainButton addTarget:self

action:@selector(flatPlainButtonPressed)

forControlEvents:UIControlEventTouchUpInside];

[self.view addSubview:self.flatPlainButton];

Requested feature added on 0.0.5 The designated initializer has changed to:



                                                – (instancetype)initWithFrame:(CGRect)frame

buttonType:(FlatButtonType)initType

buttonStyle:(FlatButtonStyle)bStyle

animateToInitialState:(BOOL)animateToInitialState;

Adding the last ‘animateToInitialState’ boolean. Sending YES, the button will perform as in older versions (will animate on viewWillAppear from original type, represented as vertical line, to your initial type). Sending NO, the button will be presented using initial type with no animation on presentation.

In both cases, you can use the following method to animate the button from one state to the next:



                                                [flatRoundedButton animateToType:nextType];

This are the 20 types avaiable for the button:



                                                typedef NS_ENUM(NSInteger, FlatButtonType) {

buttonDefaultType, // Vertical line

buttonAddType, // +

buttonMinusType, // –

buttonCloseType, // x

buttonBackType, // <

buttonForwardType, // >

buttonMenuType, // 3horizontal lines

buttonDownloadType,

buttonShareType,

buttonDownBasicType,

buttonUpBasicType,

buttonDownArrowType,

buttonPausedType,

buttonRightTriangleType,

buttonLeftTriangleType,

buttonUpTriangleType,

buttonDownTriangleType,

buttonOKType,

buttonRewindType,

buttonFastForwardType,

buttonSquareType

};
