BatteryView

May 22, 2025

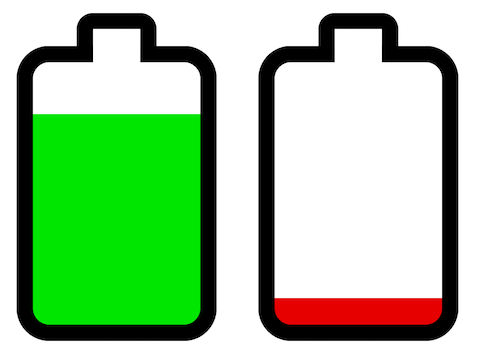

Simple battery shaped UIView

Usage



                                                let batteryView = BatteryView(frame: smallRect)

batteryView.level = 42 // anywhere in 0…100

batteryView.lowThreshold = 25 // battery fill becomes red if level is below this threshold

batteryView.gradientThreshold = 50 // battery fill gradually changes from green to red below this threshold

SwiftUI Usage



                                                BatteryShape(level: $level)

Changing Appearance

The properties below can be set in Interface Builder, in code, or through a UIAppearance proxy (e.g., BatteryView.appearance().borderColor = .gray). When using SwiftUI you can set them in the BatteryShape initializer .

Colors:



                                                batteryView.borderColor = .darkGray

batteryView.highLevelColor = .green

batteryView.lowLevelColor = .red

batteryView.noLevelColor = .gray

batteryView.noLevelText = “?” // shown over battery when the level is undefined or out of bounds
Battery Shape:



                                                batteryView.direction = .minXEdge // terminal facing left
batteryView.terminalLengthRatio = 0.1 // relative to battery length

batteryView.terminalWidthRatio = 0.4 // relative to battery width
batteryView.borderWidth = 2.5 // default is batteryLength / 20

batteryView.cornerRadius = 5 // default is batteryLength / 10

Installation

CocoaPods:



                                                pod ‘BatteryView’
