TimelineTableViewCell

TableView

October 6, 2023

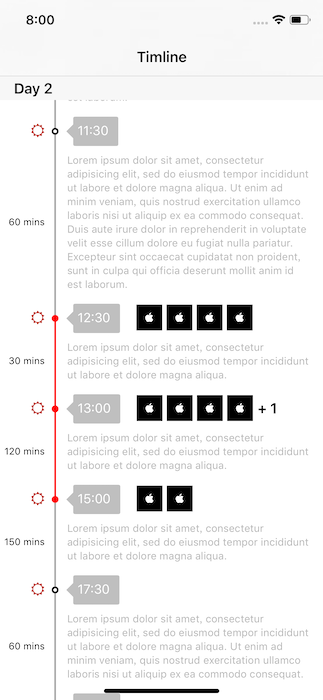

TimelineTableViewCell is a simple timeline view implemented by UITableViewCell. The UI design of TimelineTableViewCell is inspired by ISTimeline.

Requirements

iOS 9.0 or higher

v1.0.1-

Swift 3

v1.2-

Swift 4

v1.3

Swift 5

v2.0+

Breaking Changes for v1.3-: thumbnailImageView is replaced with UIStackView to support multiple thumbnails.
Do not support iOS9.0- anymore.

Installation

Swift Package Manager

The Swift Package Manager is a tool for automating the distribution of Swift code and is integrated into the swift compiler.

Once you have your Swift package set up, adding TimelineTableViewCell as a dependency is as easy as adding it to the dependencies value of your Package.swift.



                                                dependencies: [

.package(url: “https://github.com/kf99916/TimelineTableViewCell.git”)

]

CocoaPods

CocoaPods is a dependency manager for Cocoa projects. For usage and installation instructions, visit their website. To integrate TimelineTableViewCell into your Xcode project using CocoaPods, specify it in your Podfile:



                                                pod ‘TimelineTableViewCell’

Usage

Import



                                                import TimelineTableViewCell

Integration

Register Nib



                                                let bundle = Bundle(for: TimelineTableViewCell.self)

let nibUrl = bundle.url(forResource: “TimelineTableViewCell”, withExtension: “bundle”)

let timelineTableViewCellNib = UINib(nibName: “TimelineTableViewCell”,

bundle: Bundle(url: nibUrl!)!)

tableView.register(timelineTableViewCellNib, forCellReuseIdentifier: “TimelineTableViewCell”)

Dequeue



                                                let cell = tableView.dequeueReusableCell(withIdentifier: “TimelineTableViewCell”,

for: indexPath) as! TimelineTableViewCell
// Configure TimelineTableViewCell…

TimelinePoint

The point in line is represented by a TimelinePoint object.
var diameter: CGFloat the diameter of a point in the line (default 6.0)
var lineWidth: CGFloat the thickness of the point (default 2.0)
var color: UIColor the color of each point in the line (default UIColor.black)
var isFilled: Bool fills the point in the line (default false)

Initializers



                                                TimelinePoint(diameter: CGFloat, lineWidth: CGFloat, color: UIColor, filled: Bool)



                                                TimelinePoint(diameter: CGFloat, color: UIColor, filled: Bool)



                                                TimelinePoint(color: UIColor, filled: Bool)



                                                TimelinePoint()

Timeline

The line in the cell is represented by a Timeline object and is divided by the point as the front line and the backline.
var width: CGFloat the thickness of the line (default 2.0)
var frontColor: UIColor the color of the front line (defalut UIColor.black)
var backColor: UIColor the color of the back line (defalut UIColor.black)
var leftMargin: CGFloat the left margin of the line (default 60.0)

initializers



                                                Timeline(width: CGFloat, frontColor: UIColor, backColor: UIColor)



                                                Timeline(frontColor: UIColor, backColor: UIColor)



                                                Timeline()

TimelineTableViewCell

The cell is represented by a TimelineTableViewCell object.
titleLabel: UILabel! the title in the bubble
descriptionLabel: UILabel! the description
lineInfoLabel: UILabel! the information about line
thumbnailImageView: UIImageView! the thumbnail illustrationImageView: UIImageView! the illustration
var bubbleRadius: CGFloat the radius of the bubble corners (default 2.0)
var bubbleColor: UIColor the color of every bubble (default .init(red: 0.75, green: 0.75, blue: 0.75, alpha: 1.0)) viewsInStackView: [UIView] the views in the stack view. var bubbleEnabled: Bool Enable draw bubble (default true)
